- Product introduction
- Construction features
- Technical data
-
- Commodity name: CMB SERIES
- Commodity ID: CMB SERIES
The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
-
- Pump body: Cast iron
- Impeller: Brass/ PPO
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54.
- Duty: Continuously rated
- Mechanical seal: φ 12, φ 16 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 115V/60Hz models are available on request
-

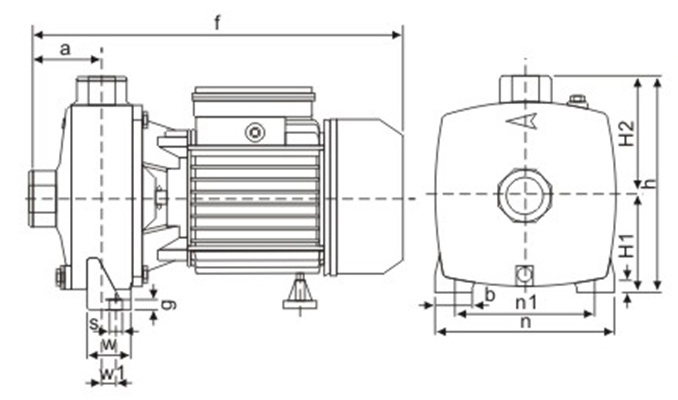

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h H1 H2 n n1 w w1 b g s CMB-150
80 395 248 118 130 208 167 48 38 43 12 13 CMB-200
80 395 248 118 130 208 167 48 38 43 12 13 CMT-150
85 395 255 125 130 240 190 50 40 45 12 13 CMT-200
85 395 255 125 130 240 190 50 40 45 12 13 CMT-300
85 395 255 125 130 240 190 50 40 45 12 13 TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V CMB-150
1.5 1.1 7.5 2.7 2850 155 39 9 1½"*1¼" 385*206*245 22 CMB-200
2 1.5 9.5 3.5 155 43 23.1 TYPE

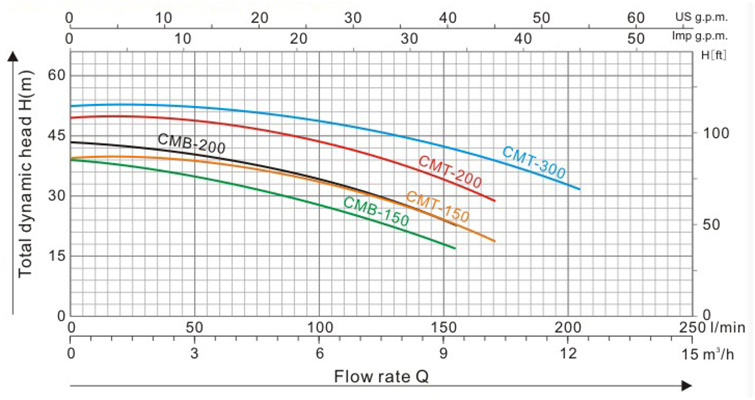

Power R.P.M Pipe Dia Current
[A]
Capacity Q[m3/h]
Q[l/1"]
0 1.2 3.6 6 8.4 10.8 12.6 Single-phase Three-phase 0 20 60 100 140 180 210 a b kW HP 2850 1½"*1¼" 1~230V 3~230V 3~400V Total head CMT-150
CMT-150
1.1 1.5 9 6.1 3.5 39.0 39.5 38.5 35.0 30.0 20 CMT-200
CMT-200
1.47 2 11.5 7.2 4.2 H[m] 47.5 48.0 47.5 45.0 38.0 30 CMT-300
CMT-300
2.2 3 13.0 8.8 5 51.0 52.5 52.0 49.5 44.0 36.0 28.0
