- Commodity name: CPM SERIES
- Commodity ID: CPM SERIES
The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
-
- Pump body: Cast iron
- Impeller: Brass(noryI if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ12, φ14, φ 16 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz,220/440V/60Hz,
Single phase 230V, 240V, 127V,110V, 115V/60Hz models are available on request
-

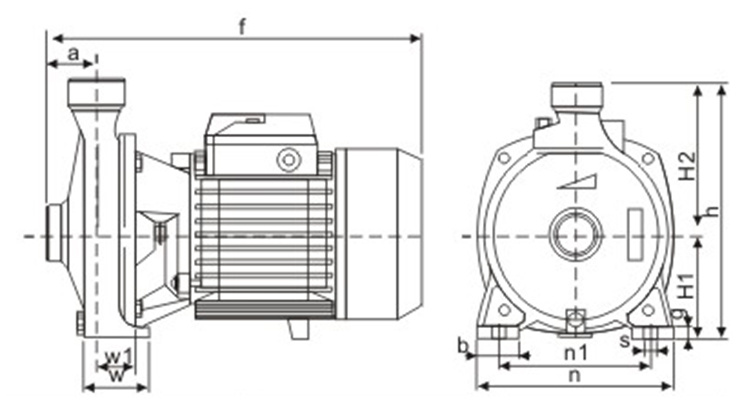

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h H1 H2 n n1 W W1 b g s CPM-130
43 264 215 90 125 165 135 52 41 32 9 10 CPM-146
44 298 226 94 132 174 144 58 43 33 10 10 CPM-158
44 298 226 94 132 174 144 58 43 33 10 10 CPM-180/T
51 340 290 115 175 230 200 80 50 40 10 11 CPM-190/T
51 340 290 115 175 230 200 80 50 40 10 11 CPM-200/T
51 340 290 115 175 230 200 80 50 40 10 11 TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V CPM-130
0.5 0.37 3.0 - 2850 90
22
9 1"*1" 310*170*230 9.5
CPM-146
0.75 0.55 3.6 - 100
27
340*175*235 12.6
CPM-158
1
0.75
5
- 120
34
340*210*250 14.7
CPM-180/T
1.5
1.1
7.5
2.7 125
39
380*250*320 23
CPM-190/T
2
1.5
9.6
3.5 130
47
425*250*330 26
CPM-200/T
3
2.2
13.5
5 135
55
27
