- Commodity name: PS SERIES
- Commodity ID: PS SERIES
The pump is with peripheral impeller containing numerous radial blades in its edge. Water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller,generate high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements.
-
- Pump body: Cast iron
- Impeller: Brass(Cast iron if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V,115V/60Hz
models are available on request
-

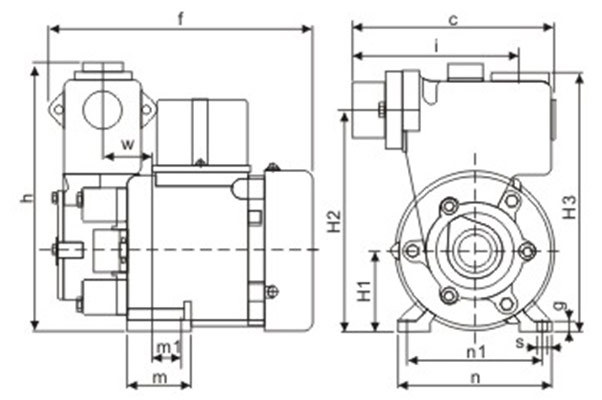

DIMENSIONS
TYPE
DIMENSIONS(mm)
f c h H1 H2 H3 i m m1 n n1 w g s GP-125
206 156 212 63 175 204 132 50 120 106 40 8 7.5 GP-250
206 156 212 63 175 204 132 50 120 106 40 8 7.5 PS-100
260 115 196 60 150 190 98 90 70 115 92 75 1.5 7.5 PS-110
260 115 196 60 150 190 98 90 70 115 92 75 1.5 7.5 PS-126
235 150 234 70 190 220 126 90 69 104 91 52 2 7 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW GP-125
0.45 0.33 2.6 2850 33 32 9 1"*1" 240*190*240 9.3 GP-250
0.5 0.37 3 40 35 265*19560*280 9.6 PS-100
0.4 0.3 2.62 33 27 280*135*215 6.5 PS-110
0.5 0.37 3 35 35 280*135*215 7.0 PS-126
0.45 0.33 2.7 33 32 255*170*255 7.5
