- Commodity name: BA3 SERIES
- Commodity ID: BA3 SERIES
The pump is with peripheral impeller containing numerous radial blades in its edge. Water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller,generate high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements.
-
- Pump body: Cast iron
- Impeller: Brass
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12, φ 16 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V,115V/60Hz
models are available on request
-

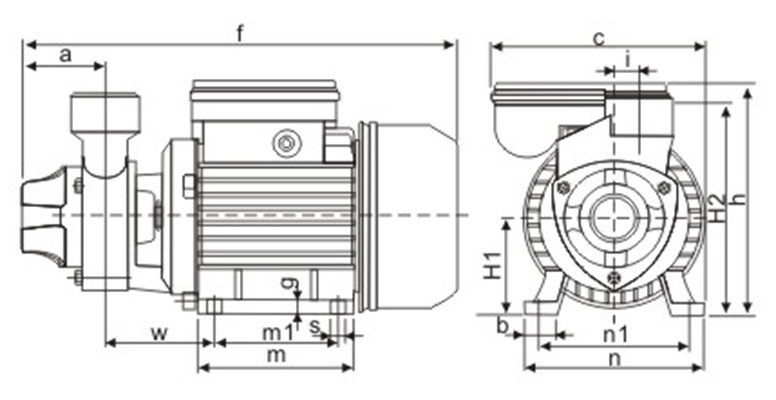

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f c h H1 H2 i m m1 n n1 w b g s IDB-35
53 281 141 151 63 143 16 100 80 120 100 72 23 7.5 9 IDB-40
55 305 155 170 71 157 20 110 90 135 112 77 25 9 10 IDB-50
55 305 155 170 71 157 20 110 90 135 112 77 25 9 10 IDB-60
92 367 205 225 80 189 21 130 100 152 125 96 25 10 11 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW IDB-35
0.5 0.37 2.6 2850 35 35 9 1"*1" 290*170*180 5.9 IDB-40
0.75 0.55 3.6 40 50 330*185*205 9.7 IDB-50
1 0.75 4.8 50 65 10.4 IDB-60
1.5 1.1 7.5 60 70 1½"*1½" 425*220*255 17.2 BA3
0.5 0.37 2.6 35 35 1"*1" 290*170*180 5.9
