PRODUCT

+
  • TPB25 SERIES.jpg

TPB25 SERIES

Classification:

Circular pumps series

Product accessories:


Contact us

previous page

next page

  • Product introduction
  • Construction features
  • Technical data
    • Commodity name: TPB25 SERIES
    • Commodity ID: TPB25 SERIES

    Application

    Suitable for domestic application such as central heating installations, industrial circulating systems, air conditioning and chilled water and circulation systems etc

  • Operating conditions

    - Suitable liquid: Heating water to VD12035 Water/glycol mixtures, max. mixing ratio: 1:1 Hydraulic corrections required for mixing ratio above 20%

    - Liquid temperature range: -10C+110C

    - Max. working pressure 10 bar

    - Ambient temperature permissible up to 40°C

    Accessories

    - Union connector fittings, thermal insulation

    Mounting positions

    - Pump shaft in the horizontal plane, terminal box optionally 3.6.9 or 12 o' clock

    Pump equipment

    - Screwed end single head pump

    - Manual 3-speed control

    - Non-overloading single phase motor

    Motor

    Mains power: 1 ~230V/50Hz Insulation Class F Protection IP44

    Material

    Pump body: Cast iron

    Impeller: PPO

    Shaft with rotor: Porcelain

    TPB -15/6

    TPB: Screwed-end pump

    25: Connection size

    6:Rated shut-off head(m)

    TPB -25/8

    TPB: Screwed-end pump

    25: Connection size

    8:Rated shut-off head(m)

  •

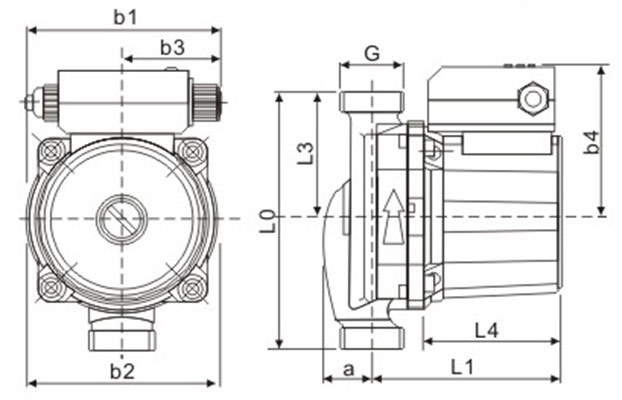

    DIMENSIONS

    TYPE

    DIMENSIONS(mm)

    b1 b2 b3 B4 a L0 L1 L3 L4 G

    TPB-25/6

    100 92.5 54 73 33 130 97 90 79 1½"

    TPB-25/8

    108.5 110.5 49 77 35.5 180 121 90 90.5 1½"

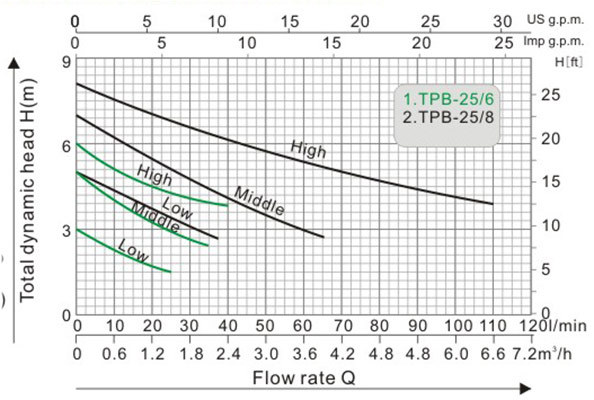

    TYPE power

    Max.Flow

    (I/min)

    Max.Head

    (m)

    Inlet/outlet

    Inch(mm)

    N.W

    (kg)

    HP KW

    TPB-25/6(High)

    0.12 93 40 6 1½"1½"(38) 3.2

    TPB-25/6(Middle)

    0.09 67 35 5 1½"1½"(38) 3.2

    TPB-25/6(Low)

    0.06 46 25 3 1½"1½"(38) 3.2

    TPB-25/8(High)

    0.22 165 110 8 1½"1½"(38) 4.2

    TPB-25/8(Middle)

    0.15 115 66 7 1½"1½"(38) 4.2

    TPB-25/8(Low)

    0.1 75 38 5 1½"1½"(38) 4.2
