- Commodity name: TPB-15/6 TPB-20/11 SERIES
- Commodity ID: TPB-15/6 TPB-20/11 SERIES
Application
Suitable for domestic application such as central heating installations, industrial circulating systems, air conditioning and chilled water and circulation systems etc
-
Operating conditions
- Suitable liquid: Heating water to VD12035 Water/glycol mixtures, max. mixing ratio: 1:1 Hydraulic corrections required for mixing ratio above 20%
- Liquid temperature range: -10C+110C
- Max. working pressure 10 bar
- Ambient temperature permissible up to 40°C
Accessories
- Union connector fittings, thermal insulation
Mounting positions
- Pump shaft in the horizontal plane, terminal box optionally 3.6.9 or 12 o' clock
Pump equipment
- Screwed end single head pump
- Manual 3-speed control
- Non-overloading single phase motor
- Bronze body, 1 80mm port-to-port
- Cast iron body, 1 80mm port-to-port.
Motor
Mains power: 1 ~230V/50Hz Insulation Class F Protection IP44
Material
Pump body: Cast iron
Impeller: PPO
Shaft with rotor: Porcelain
Bearings: Graphite
TPB -15/6
TPB: Screwed-end pump
15: Connection size
6:Rated shut-off head(m)
TPB -20/11
TPB: Screwed-end pump
20: Connection size
11:Rated shut-off head(m)
-

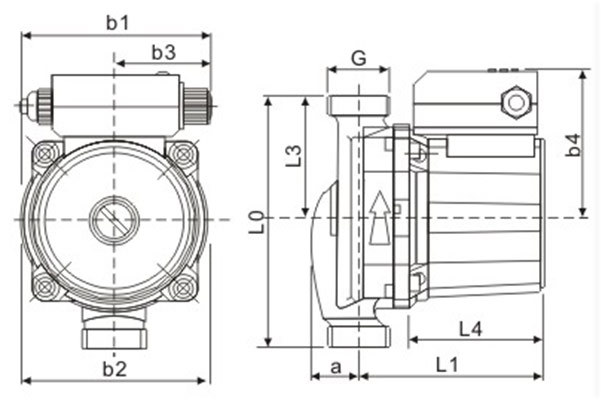

DIMENSIONS
TYPE
DIMENSIONS(mm)
b1 b2 b3 B4 a L0 L1 L3 L4 G TPB-15/6
96.5 95 49 77 25 130 96 64 78 1" TPB-20/11
118 134 49 77 21.5 180 117 89 90.5 1" TYPE power Max.Flow
(I/min)
Max.Head
(m)
Inlet/outlet
Inch(mm)
N.W
(kg)
HP KW TPB-15/6(High)
0.12 93 40 6 1"1"(25) 3.2 TPB-15/6(Middle)
0.09 67 35 5 1"1"(25) 3.2 TPB-15/6(Low)
0.06 46 25 3 1"1"(25) 3.2 TPB-20/11(High)
0.22 165 32 11 1"1"(25) 4.2 TPB-20/11(Middle)
0.15 115 20 7 1"1"(25) 4.2 TPB-20/11(Low)
0.1 75 12 3.4 1"1"(25) 4.2
