- Commodity name: JET-L SERIES
- Commodity ID: JET-L SERIES
The JET-L & JET-B series pumps are with an automatic ejector system, find many uses in domestic applications, gardens and supply water from wells, and So on.
These pumps are suitable for clean water and chemically non-aggressive liquid. They are very reliable, safe and simple to use.
-
- Pump body: Cast iron
- Impeller: Brass(noryI if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12 ceramic/steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 115V/60Hz
models are available on request .
-

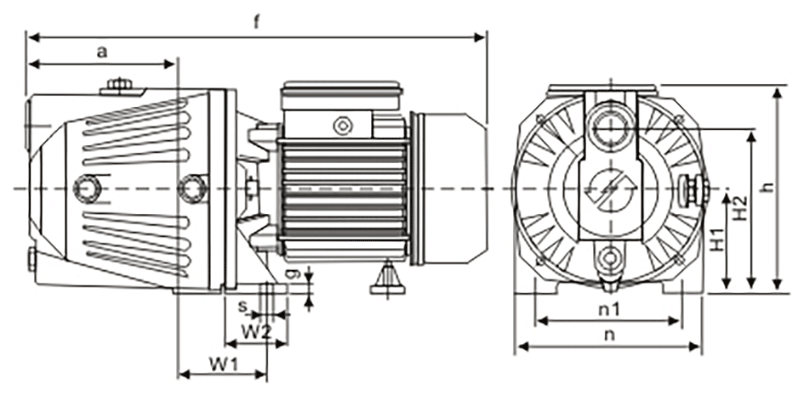

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h H1 H2 W1 W2 n n1 g s JET-40L/B
143 425 196 98 156 79 55 182 142 9 11 JET-60L/B
143 425 196 98 156 79 55 182 142 9 11 JET-80L/B
143 425 196 98 156 79 55 182 142 9 11 JET-100L/B
143 425 196 98 156 79 55 182 142 9 11 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW JET-40L/B
0.45 0.33 2.7 2850 40 35 9 1"*1" 460*210*220 12.5 JET-60L/B
0.5 0.37 3 45 38 14.1 JET-80L/B
0.75 0.55 3.6 50 45 15.2 JET-100L/B
1 0.75 4.8 60 48 16
