- Product introduction
- Construction features
- Technical data
-
- Commodity name: JGM SERIES
- Commodity ID: JGM SERIES
The JGM series pumps are with an automatic ejector system, find many uses in domestic applications, gardens, and supply water from wells, and so on.
These pumps are suitable for clean water and chemically non-aggressive liquid, They are very light reliable, safe and simple to use.
-
- Pump body: Cast iron
- Impeller: Brass(noryI if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12, φ 16 ceramic/steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz,220/440V/60Hz,
Single phase 230V, 240V, 127V,110V,11 5V/60Hz
models are available on request
-

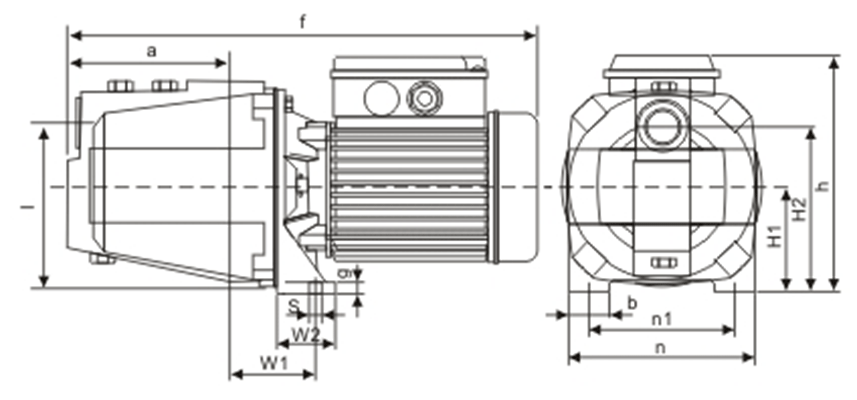

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h H1 H2 I w2 n n1 w1 b g s JGM-255
138 430 200 95 97 153 60 185 156 92 34 11 10 JGM-355
138 430 200 95 97 153 60 185 156 92 34 11 10 JGM-455
138 430 200 95 97 153 60 185 156 92 34 11 10 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW JGM-255
0.5 0.37 3 2850 45 38 9 1"*1" 410*170*2180 16.6 JGM-355
0.75 0.55 3.6 50 45 460*210*230 17.3 JGM-455
1 0.75 4.8 60 48 18.4
