- Commodity name: SMB SERIES
- Commodity ID: SMB SERIES
The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
-
- Pump body: Stainless Steel(AISI304)
- Impeller: Stainless Steel
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 16 ceramic steatite/graphite
- Shaft: Stainless Steel AISI 420
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 115V/60Hz models are available on request
-
TYPE
Motor L1 L2 L3 H DNS
Inlet
DND
Outlet
Weight
(kg)
Phase Power(kW) mm SMB60/0.37
3PH/1PH 0.37 371 113 54 226 G1¼ G1 11 SMB60/0.55
0.55
371
113
54 226 G1¼ G1 11.8 SMB60/0.75
0.75
371
113
54 226 G1¼ G1 13 SMB100/0.55
0.55
371
113
54 226 G1¼ G1 11.8 SMB100/1.1
1.1
371
113
54 226 G1¼ G1 14 SMB160/0.75
0.75
384
127
56 226 G1¼ G1¼ 13 SMB160/1.1
1.1
384
127
56 226 G1¼ G1¼ 14 SMB250/1.1
1.1
384
127
56 226 G1¼ G1¼ 18 SMB250/1.5
1.5
450
127
56 226 G1¼ G1¼ 20 SMB250/2.2
2.2
450
127
56 226 G1¼ G1¼ 18 SMB330/1.5
1.5
450
127
56 226 G2 G1¼ 18 SMB330/2.2
2.2
450
127
56 226 G2 G1¼ 20 TYPE

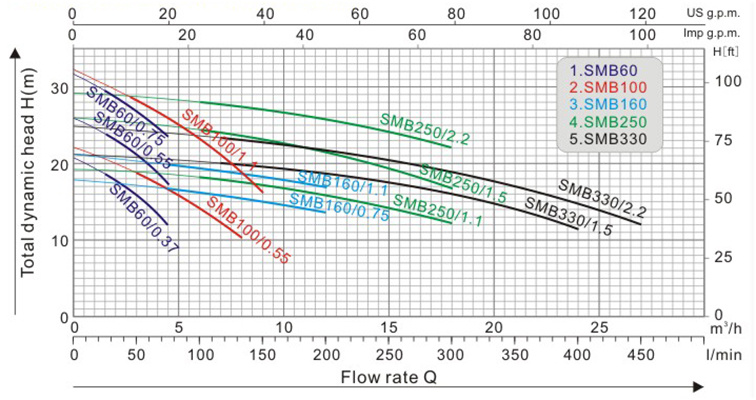

Power(kW) Q(m3/h) 1.5 2.5 3.5 4.5 6 SMB60/0.37
0.37
H(m) 18.4 17.2 15.0 11.8 SMB60/0.55
0.55
23.6 22.1 20.2 17.3 SMB60/0.75
0.75
29.3 27.7 26 23.6 SMB100/0.55
0.55
19.3 18.8 16.6 13.9 12.4 10.3 SMB100/1.1
1.1
29.2 28 26.8 23.2 21.4 18.5 16.3 SMB160/0.75
0.75
16.7 16.2 15.7 15.4 14.9 13.6 13.5 SMB160/1.1
1.1
20 19.4 19.0 18.8 18.3 17.8 16.7 SMB250/1.1
1.1
18.3 18.0 17.7 17.4 17.2 16.2 14.2 12.1 SMB250/1.5
1.5
24.4 24.2 23.7 23.3 22.7 22.2 19.2 16.7 SMB250/2.2
2.2
28.1 27.9 27.3 27.2 26.8 25.9 24.4 22 SMB330/1.5
1.5
20.2 19.8 19.6 19.3 18.7 17.6 16.2 14.8 13.4 11.5 SMB330/2.2
2.2
23.5 23.2 22.8 22.5 21.8 20.5 18.9 17.7 16.4 14.7 12.0
