- Product introduction
- Construction features
- Technical data
-
- Commodity name: PX SERIES
- Commodity ID: PX SERIES
The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
-
- Pump body: Cast iron
- Impeller: Brass(Cast iron if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 16 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 11OV, 115V/60Hz models are available on request
-

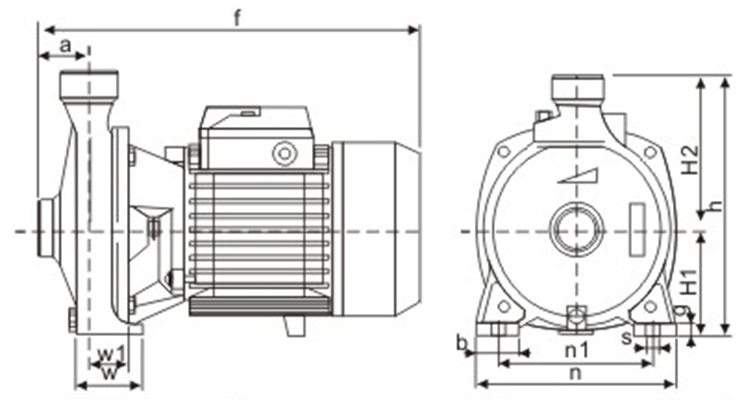

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h c H1 i m m1 n n1 w g s PX-105
55 340 200 192 80 50 124 90 135 115 100 10 10 PX-205
55 340 200 192 80 50 124 90 135 115 100 10 10 PX-305/T
64 395 206 218 90 77 140 100 154 125 111 11 10 PX-405/T
64 395 206 218 90 77 140 100 154 125 111 11 10 TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V PX-105
0.5
0.37 3.0 - 2850 110 14 9 1"*1" 350*220*230 14 PX-205
1
0.75 5.0 - 220 14 1½"*1½" 16 PX-305/T
1.5
1.1 7.5 2.7 380 16 2"*2" 440*295*275 20 PX-405/T
2 1.5 9.6 3.5 400 20 21.5
