- Product introduction
- Construction features
- Technical data
-
- Commodity name: FCP SERIES
- Commodity ID: FCP SERIES
The normal power standard is 220V 50Hz single phase. Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V, 240V, 127V, 11OV, 115V/60Hz models are available on request
-
- Pump body: ABS
- Impeller: ABS
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanicalseal: φ12, φ 19 ceramic steatite/graphite
- Shaft: Stainless steelAISI 420
- Thermal protector
The swimming pool water pump is specially developed according to the operational features of the swimming pools both domestic and abroad and suitable to clean and remove dirts to keep the water in a good quality and to eliminate the inconvenience to change the water often.
The pump is equipped with a special filtering system, which is fully mounted on a hand truck, where the process from sucking water to becoming standard water quality by filtering is finished.
-

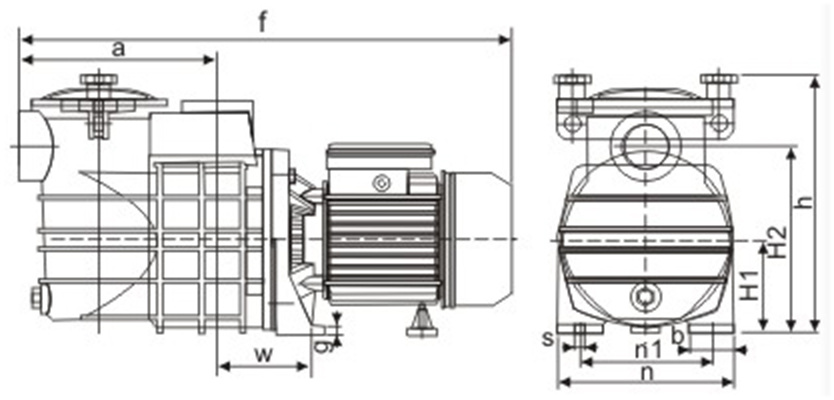

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h H1 H2 w n n1 g s FCP-250
153 392 220 92 140 75 130 100 9 7 FCP-330
153 392 220 92 140 75 130 100 9 7 FCP-370
203 497 263 95 180 95 180 136 9 9 FCP-550
203 497 263 95 180 95 180 136 9 9 FCP-750
203 497 263 95 180 95 180 136 9 9 TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V FCP-250
0.33 0.25 1.8 - 2850 170 8 9 1½"*1½" 420*180*245 6.0 FCP-330
0.4 0.33 2.1 - 180 10 6.5 FCP-370
0.5 0.37 2.7 - 190 11 6.5 FCP-550
0.75 0.55 3.6 - 200 14 525*215*285 8 FCP-750
1 0.75 4.5 - 220 16 10
