- Commodity name: TPB12 SERIES
- Commodity ID: TPB12 SERIES
Application
Suitable for domestic application such as central heating installations, industrial circulating systems, air conditioning and chilled water and circulation systems etc
-
Operating conditions
- Suitable liquid: Heating water to VD12035 Water/glycol mixtures, max. mixing ratio: 1:1 Hydraulic corrections required for mixing ratio above 20%
- Liquid temperature range: -10C+110C
- Max.working pressure 10 bar
- Ambient temperature permissible up to 40°C
Accessories
- Union connector fittings, thermal insulation
Mounting positions
- Pump shaft in the horizontal plane, terminal box optionally 3.6.9 or 12 o' clock
Pump equipment
- Screwed end single head pump
- Manual 3-speed control
- Non-overloading single phase motor
Motor
Mains power:1 ~ 230V/50Hz Insulation Class F
Protection IP44
Material
Pump body: Cast iron
Impeller: PPO
Shaft with rotor:
Porcelain

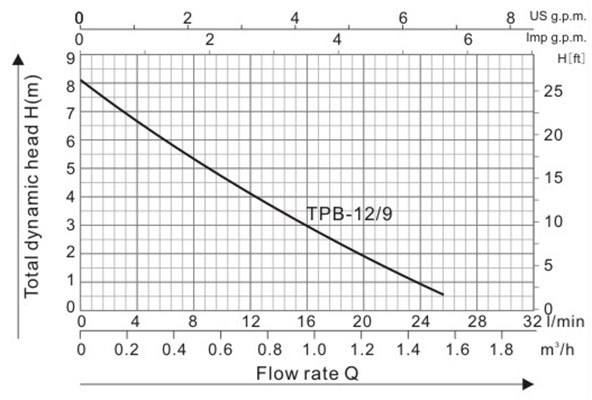

TPB -12/9
TPB: Screwed-end pump 12: Connection size 9:Rated shut-off head(m)
-
DIMENSIONS
TYPE
DIMENSIONS(mm)
b1 b2 b3 B4 a L0 L1 L3 L4 G TPB-12/9
98.5 102.5 45.5 78 23.5 160 105.5 95 78 ¾" TYPE power Max.Flow
(I/min)
Max.Head
(m)
Inlet/outlet
Inch(mm)
N.W
(kg)
HP KW TPB-12/9
0.12 93 25 9 ¾"(19*19) 3.7
