- Product introduction
- Construction features
- Technical data
-
- Commodity name: JET-M SERIES
- Commodity ID: JET-M SERIES
The JET-P & JET-M series pumps are with an automatic ejector system, find many uses in domestic applications, gardens and supply water from wells, and So on. These pumps are suitable for clean water and chemically aggressiveliquid. They are very reliable, safe and simple to use.
-
- Pump body: Cast iron
- Impeller: Brass(noryl if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ12, φ 16 ceramic/steatite/graphite
- Shaft: Carbon steel AISI 1 045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 11OV, 115V/60Hz
models are available on request
-

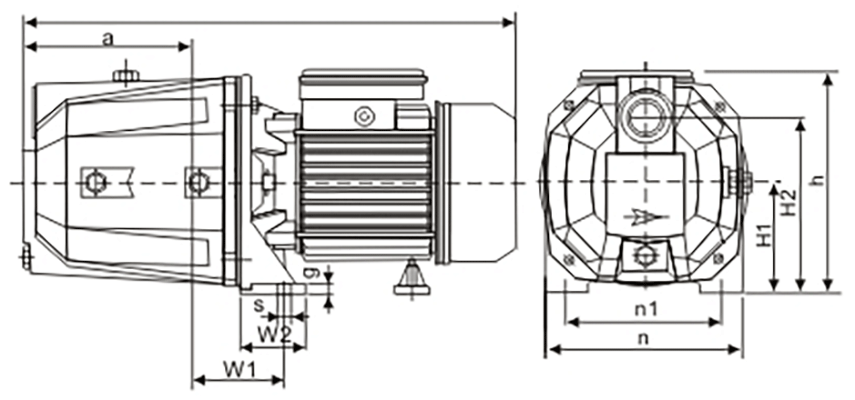

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h H1 H2 W1 W2 n n1 g s JET-60P
138 428 200 98 158 79 55 182 142 9 11 JET-80P
138 428 200 98 158 79 55 182 142 9 11 JET-100P
138 428 200 98 158 79 55 182 142 9 11 JET-120P/T
138 428 200 98 158 79 55 182 142 9 11 JET-140P/T
100 550 258 120 200 170 50 235 200 12 12 JET-160P/T
100 550 258 120 200 170 50 235 200 12 12 TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V JET-60P/M
0.5 0.37 3 - 2850 45 38 9 1"*1" 490*210*250 15.5 JET-80P/M
0.75 0.55 3.6 - 50 45 16.5 JET-100P/M
1 0.75 4.8 - 60 48 17.5 JET-120P/T
1.5 1.1 7.5 2.7 80 56 1½"*1½" 610*310*330 26 JET-140P/T
2 1.5 9.6 3.5 90 62 27.5 JET-160P/T
3 2.2 13.5 5.0 100 75 29
