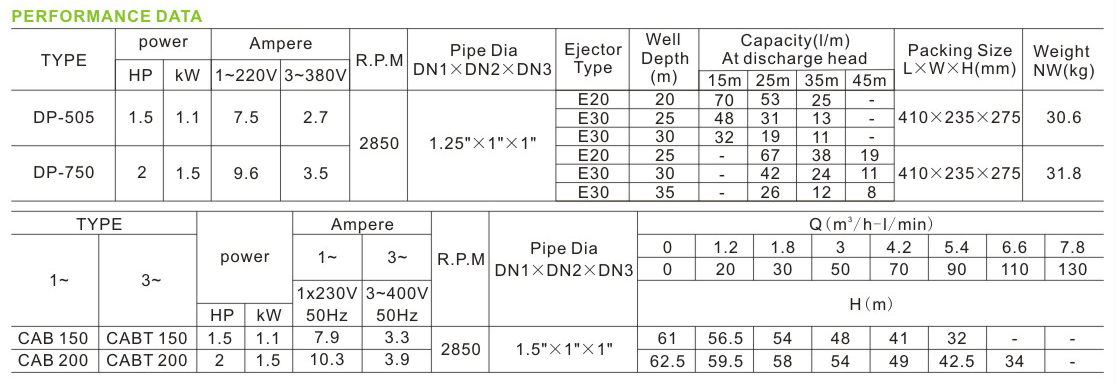

- Technical data
-
- Commodity name: DP series
- Commodity ID: DP

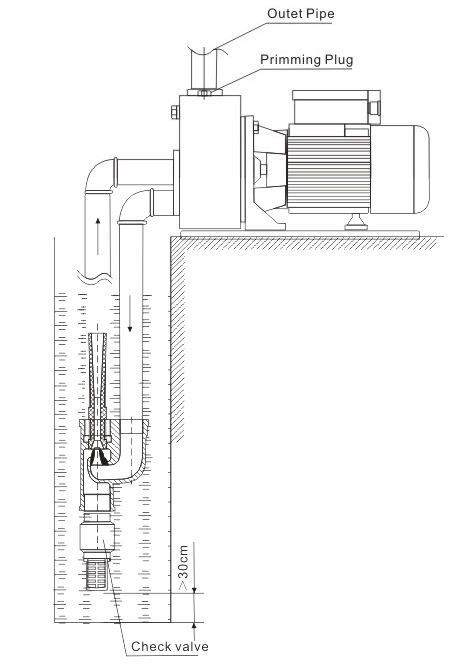

The pump comprises a ejector unit and a centrifugal pump with double impellers. The most remarkable character is it can be used to supply clean water from a relatively deep well.
-
- Pump body: Cast iron
- Impeller: Double Brass impeller 1 PPO impeller
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 16 ceramic/steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 11OV,115V/60Hz
models are available on request
-
