- Product introduction
- Construction features

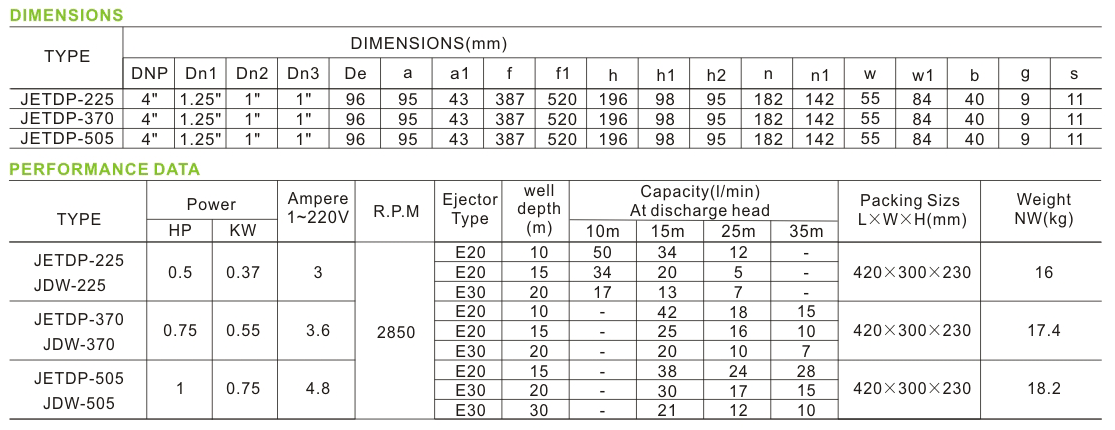

- Technical data
-
- Commodity name: JETDP series
- Commodity ID: JETDP
JETDP pump comprises a ejector unit and a centrifugal pump. The most remarkable character is it can be used to supply clean water from a relatively deep well, itis also suitable for chemically non-aggressive fluid To ensure the adequate counter pressure, it is always installed a foot valve with a filter on the suction opening.
-
- Pump body: Cast iron
- Impeller: Brass impeller
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanicalseal: φ 12 ceramic/steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 115V/60Hz
models are available on request
-
